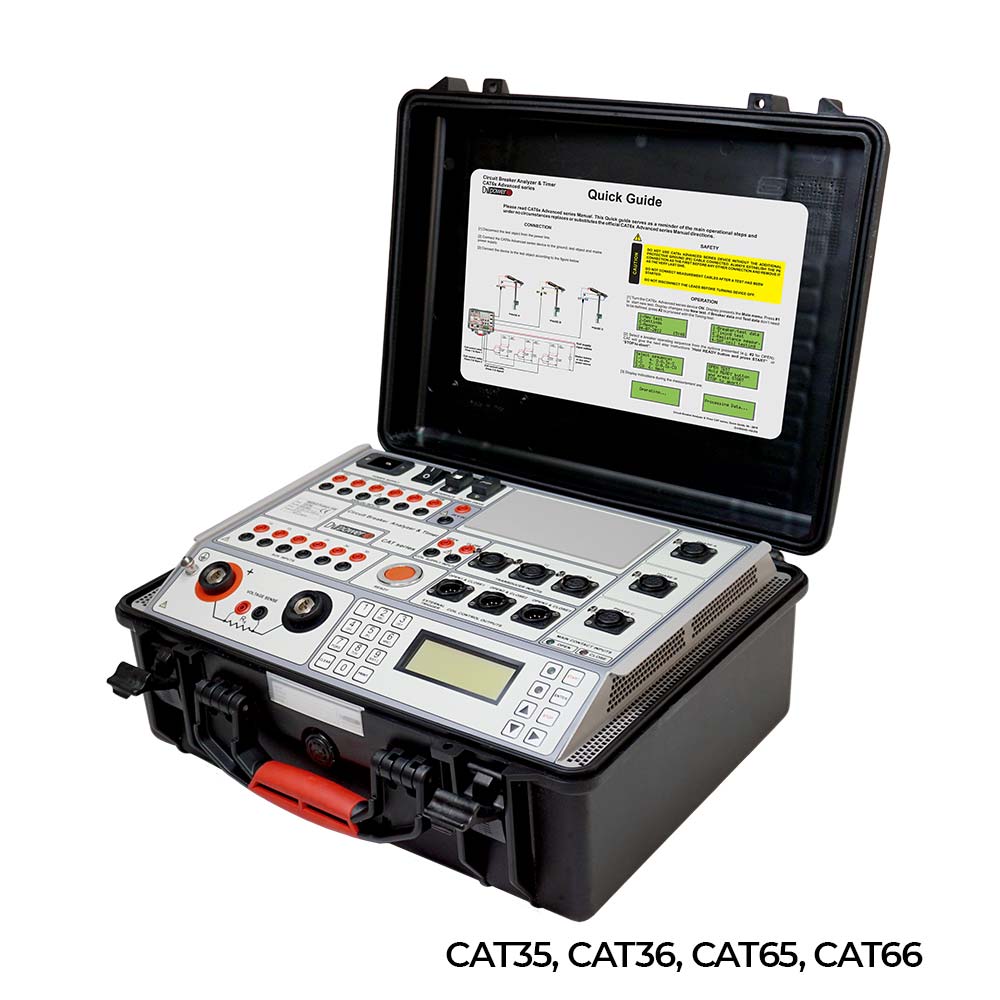

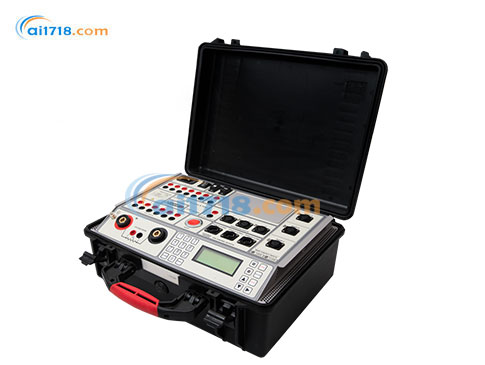

瑞典DV POWER　CAT36斷路器分析儀和計時器

Included accessories

Windows based DV-Win PC software including USB cable

Mains power cable

Ground (PE) cable

Plastic transport case

型號：CAT36斷路器分析儀和計時器

品牌：瑞典DV POWER

會員價格：面議

聯系方式： 010-68940148

在線解答：

立即咨詢

瑞典DV POWER

IBEKO POWER AB 公司位于瑞典，專業致力于新一代電力測試設備的研發和制造，所有產品均采用更先進的技術和工藝制造。“DV- power”是其商標，該系列產品是由前“Programma”公司的一組工程師與ABB 公司共同研發的。我司成立于2000年，由一群電力電子技術領域...[查看更多]

瀏覽過此產品的用戶最終購買了

瑞典DVPower CAT36斷路器分析儀和計時器由愛儀器儀表網代理，CAT36是可以是單機控制或通過PC控制，來評估斷路器狀態的數字化儀器。現在熱賣中，如需購買，可通過ai1718.com的客服熱線聯系我們！

CAT36斷路器分析儀和計時器簡介：
?CAT36是可以是單機控制或通過PC控制，來評估斷路器狀態的數字化儀器
?CAT36堅固耐用的設計結合了*的技術與新的增強功能，為中壓或高壓的瓷柱式斷路器和落地罐式斷路器安全快速檢測而設計
?CAT36用戶可以選擇任何想要的操作模式：關閉（C）打開（O），閉-開（CO），開閉（OC），開-關-開（OCO）
?CAT36測試結果可以存儲在儀器內部的存儲器，U盤或以表格和圖表的形式通過熱敏打印機打印出來

CAT36斷路器分析儀和計時器特點：
?安全快速檢測與BSG（雙端接地）
?簡單和易于操作
?時間和運動測量
?6個定時通道（3×2）的主觸點電阻
?3個定時通道的輔助輸入
?合閘電阻測量
?4個模擬輸入+1個傳感器輸入
?同時支持數字和模擬傳感器
?測試結果使用DV-WIN軟件詳細分析

CAT36斷路器分析儀和計時器原理：
?斷路器狀態評估的重要組成部分，是通過新的測試結果比較之前的測試中得到的結果
?測量值與制造商提供的規格做比較。獲得測試數據可以在后期作為序列測量的參考
?為了提供準確的比較，測試需要使用相同的測試參數來進行
?在測試結果的偏差和變化可能表明該斷路器狀態變差
?此功能可以在DV-WIN實現測試計劃和圖形疊加功能
?斷路器檢修過程的*結果，可通過DV-WIN軟件分析和創建定制報告

CAT36斷路器分析儀和計時器應用：
?可進行對所有斷路器的應用程序列表：
?高達12個主觸頭同步定時測量（每相4個）
?包括合閘電阻（如果在電路斷路器存在的話）和6輔助觸點
?合閘電阻測量（如果在斷路器存在的話）
?評估斷路器各極間的同步性
?同時對4線圈電流的分析（3打開和1閉合線圈）
?通過圖形顯示的電壓值評價的變電站電池狀態
?位移，觸頭接觸，超程，回彈，阻尼時間和斷路器運動部件的平均速度測量
?*次跳閘測試
?靜態接觸電阻測量（測試電流高達500A）
?動態電阻測量（測試電流高達500A）

?在落地罐式斷路器磁心去磁（CAT66D可配置）

CAT35訂購信息
Instrument					Article No
Circuit Breaker Analyzer & Timer CAT35					CAT3500-N-01
Circuit Breaker Analyzer & Timer CAT36					CAT3600-N-01
Circuit Breaker Analyzer & Timer CAT64A					CAT64A0-N-01
Circuit Breaker Analyzer & Timer CAT65					CAT6500-N-01
Circuit Breaker Analyzer & Timer CAT66					CAT6600-N-01
Circuit Breaker Analyzer & Timer CAT124A					CAT124A-N-01
Circuit Breaker Analyzer & Timer CAT125					CAT1250-N-01
Circuit Breaker Analyzer & Timer CAT126					CAT1260-N-01

Standard accessories					Article No
Main contact cables
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT35, CAT36)					CM-05-34MXST
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT64A, CAT65, CAT66)					CM-05-65MXST
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT124A, CAT125, CAT126)					CM-05- 12MXST
Main contact cables extension
Main contact cables extension 10 m (32.8 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66)					E3- 10-65MXFX
Main contact cables extension 10 m (32.8 ft) (for CAT124A, CAT125, CAT126)					E6- 10- 12MXFX
Control cabinet cables
Coil control cable set 5 m (16.4 ft) with banana plugs (Single-pole control -6 coil channels)					CO-05-6BC5B1
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (red) (x 6)					JCR- 15-2REBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (black) (x 6)					JCB- 15-2REBP
Test probe with grip jaws (black) (x 3)					TESTPR-GJ-B0
Test probe with grip jaws (red) (x 3)					TESTPR-GJ-R0
Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs					CS-05-02BPBP
Auxiliary contacts cable set 12 x 5 m (16.4 ft) with banana plugs					AX-05-02BPBP
Analog channels cable set 12 x 5 m (16.4 ft) with banana plugs					AN-05-02BPBP
Current cables
Current cables 2 x 10 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps (for CAT36, CAT66 and CAT126)					C2- 10-50VMB3
Current cables 2 x 10 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps (for CAT35, CAT65 and CAT125)					C2- 10-25VMB1
Sense cables
Sense cables 2 x 10 m (32.8 ft) with alligator clamps (for CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)					S2- 10-02BPA1
Cable cases
Cable plastic case - large size (x 2)					CABLE-CAS-03

Optional accessories and features				Article No
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker for CAT3x Advanced series (3 channels - one break per phase) (available with CAT35 and CAT36)				BSG-CATII-00
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker for CAT6x and CAT12x Advanced series (6 channels - two breaks per phase) (available with CAT65, CAT66, CAT125 and CAT126)				BSG-CATII-01
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Dead Tank Circuit Breaker for CAT Advanced series (available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)				BSG-CATDTB-0
BSG on GIS feature for CAT Advanced series (available with CAT36, CAT66 and CAT126)				BSG-CATGIS-0
Current cables with branch connectors 2 x (3 x 5 m, 16 mm2) with SCT clamps				C6BC-05-16GMST
Extension cables 2 x 5 m 50 mm2				E2-05-50VMVF
AC Current clamp 1 A / 1 V and cable 5 m with banana plugs				CACL-ACBP-05
Built-in high precision measurement module (available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)				RMO-HPMM-DG0
Current clamp 30/300 A power supplied from the instrument with adapter 5 m (16.4 ft)				CACL-0300-07
Current clamp 30/300 A with internal battery supply and extension 5 m (16.4 ft)				CACL-0300-08
Thermal printer 112 mm (4.4 inch) (built-in)				PRINT- 112-01
Thermal paper roll				PRINT- 112-RO
Cable plastic case with wheels - large size				CABLE-CAS-W3

Control cabinet cables
Coil control cable set 10 m with banana plugs (Single-pole control -6 coil channels)					CO- 10-6BC5B1
Coil control cable set 15 m with banana plugs (Single-pole control -6 coil channels)					CO- 15-6BC5B1
Coil control cable 5 m with banana plugs (Three-pole control - 2 coil channels)					CO-05-00C5B1
Coil control cable 10 m with banana plugs (Three-pole control - 2 coil channels)					CO- 10-00C5B1
Coil control cable 15 m with banana plugs (Three-pole control - 2 coil channels)					CO- 15-00C5B1
Coil supply cable set 4 x 2 m 2,5 mm2 (6.5 ft, 13 AWG) with banana plugs					CS-02-02BPBP
Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs					CS-05-02BPBP
Coil supply cable set 4 x 10 m 2,5 mm2 (32.8 ft, 13 AWG) with banana plugs					CS- 10-02BPBP
Coil supply cable set 2 x 2 m 2,5 mm2 with banana plugs					C2-02-02BPBP
Coil supply cable set 2 x 5 m 2,5 mm2 with banana plugs					C2-05-02BPBP
Coil supply cable set 2 x 10 m 2,5 mm2 with banana plugs					C2- 10-02BPBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (black)					JCB- 15-2BPBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (red)					JCR- 15-2BPBP
Auxiliary contacts cable set 12 x 5 m with banana plugs					AX-05-02BPBP
Auxiliary contacts cable set 12 x 10 m with banana plugs					AX- 10-02BPBP
Auxiliary contacts cable set 12 x 15 m with banana plugs					AX- 15-02BPBP
Analog channels cable set 12 x 5 m with banana plugs					AN-05-02BPBP
Analog channels cable set 12 x 10 m with banana plugs					AN- 10-02BPBP
Analog channels cable set 12 x 15 m with banana plugs					AN- 15-02BPBP
Main contact cables
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT35, CAT36)					CM-03-34MXST
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT64A, CAT65, CAT66)					CM-03-65MXST
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT124A, CAT125, CAT126)					CM-03- 12MXST
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT35, CAT36)					CM-03-34MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT35, CAT36)					CM-05-34MXA2
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT64A, CAT65, CAT66)					CM-03-65MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT64A, CAT65, CAT66)					CM-05-65MXA2
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT124A, CAT125, CAT126)					CM-03- 12MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT124A, CAT125, CAT126)					CM-05- 12MXA2
Main contact cables extension
Main contact cables Extension 5 m (16.4 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66)					E3-05-65MXFX
Main contact cables Extension 5 m (16.4 ft) (for CAT124A, CAT125, CAT126)					E6-05- 12MXFX
Main contact cables Extension 15 m (49.2 ft) (for CAT35, CAT64A, CAT65, CAT66)					E3- 15-65MXFX
Main contact cables Extension 15 m (49.2 ft) (for CAT124A, CAT125, CAT126)					E6- 15- 12MXFX
Current cables
Current cables 2 x 5 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps (for CAT36, CAT66 and CAT126)					C2-05-50VMB3
Current cables 2 x 15 m 70 mm2 (49.2 ft, 00 AWG) with battery clamps (for CAT36, CAT66 and CAT126)					C2- 15-70VMB3
Current cables 2 x 5 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps (for CAT35, CAT65 and CAT125)					C2-05-25VMB1
Current cables 2 x 15 m 35 mm2 (49.2 ft, 2 AWG) with battery clamps (for CAT35, CAT65 and CAT125)					C2- 15-35VMB1
Sense cables
Sense cables 2 x 5 m (32.8 ft) with alligator clamps A2					S2-05-02BPA2
Sense cables 2 x 15 m (49.2 ft) with alligator clamps A2					S2- 15-02BPA2

Transducers
Digital rotary transducer with 5 m (16.4 ft) connection cable					DRT-250-C605
Digital rotary transducer with 10 m (32.8 ft) connection cable					DRT-250-C610
Digital rotary transducer with 5 m (16.4 ft) connection cable with accessories					DRT-SET-0005
Digital rotary transducer with 10 m (32.8 ft) connection cable with accessories					DRT-SET-0010
Linear analog transducer (TLH) 150 mm (5.9 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT- 150-C305
Linear analog transducer (TLH) 225 mm (8.85 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT-225-C305
Linear analog transducer (TLH) 300 mm (11.8 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT-300-C305
Linear analog transducer (TLH) 500 mm (19.68 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT-500-C305
Three phase digital rotary transducer kit (with 5 m connection cable)					TPH-DRTS-005
Online first trip test kit - Three-pole control for CAT Advanced series					ONFTT-KIT-01
Online first trip test kit - Single-pole control for CAT Advanced series					ONFTT-KIT-00
Transducer mounting kits
Universal transducer mounting kit					UTM-KIT-0000
Universal transducer mounting kit - extended version					UTM-KIT-0001
Doble transducer adapter					DTA-BOX-C002
Big clamping base					UTM-LCB-0080
Small clamping base					UTM-SCB-0030
Articulated arm					UTM-AA-0288
Carrier (L profile) for digital rotary transducer					DRT-CRL-0090
Carrier for analog rotary transducer					ART-CRL-0000
Linear transducer rod					LAT-ROD-0000
Bellow coupling (M6)					DRT-COUP-003
Bellow coupling (M10)					DRT-COUP-001
Magnet					UTM-MAG-0800
Four mechanical adapters 10 mm (M6, M8, M10, M12)					DRT-MADP-004
Four mechanical adapters 6 mm (M6, M8, M10, M12)					DRT-MADP-604

CAT36斷路器分析儀和計時器規格
電源供應
根據 IEC/EN60320-1; UL498, CSA 22.2連接
電源	90 V - 264 V AC
頻率	50/60 Hz
I輸入功率	3900 VA
保險絲15 A / 250 V，快速反應，但不是用戶可更換
適用標準
安裝/過電壓	第二類
污染	2度
安全	LVD 2014 / 35 /歐盟（CE符合）標準EN 61010-1
EMC	指令2014 / 30 /歐盟（CE符合標準EN 61326-1:2006）
CAN/CSA-C22.2 No. 61010-1
環境條件
操作溫度	-10 oC - + 55 oC / 14 oF - +131 oF
存儲和運輸	-40 oC - + 70oC / -40 oF - +158 oF
濕度	度5% - 95%相對濕度
尺寸/重量
尺寸(寬 x 高 x 深):	480 mm x 197 mm x 395 mm 18.89 in x 7.75 in x 15.55 in
重量	12,9 kg / 28.4 lbs
