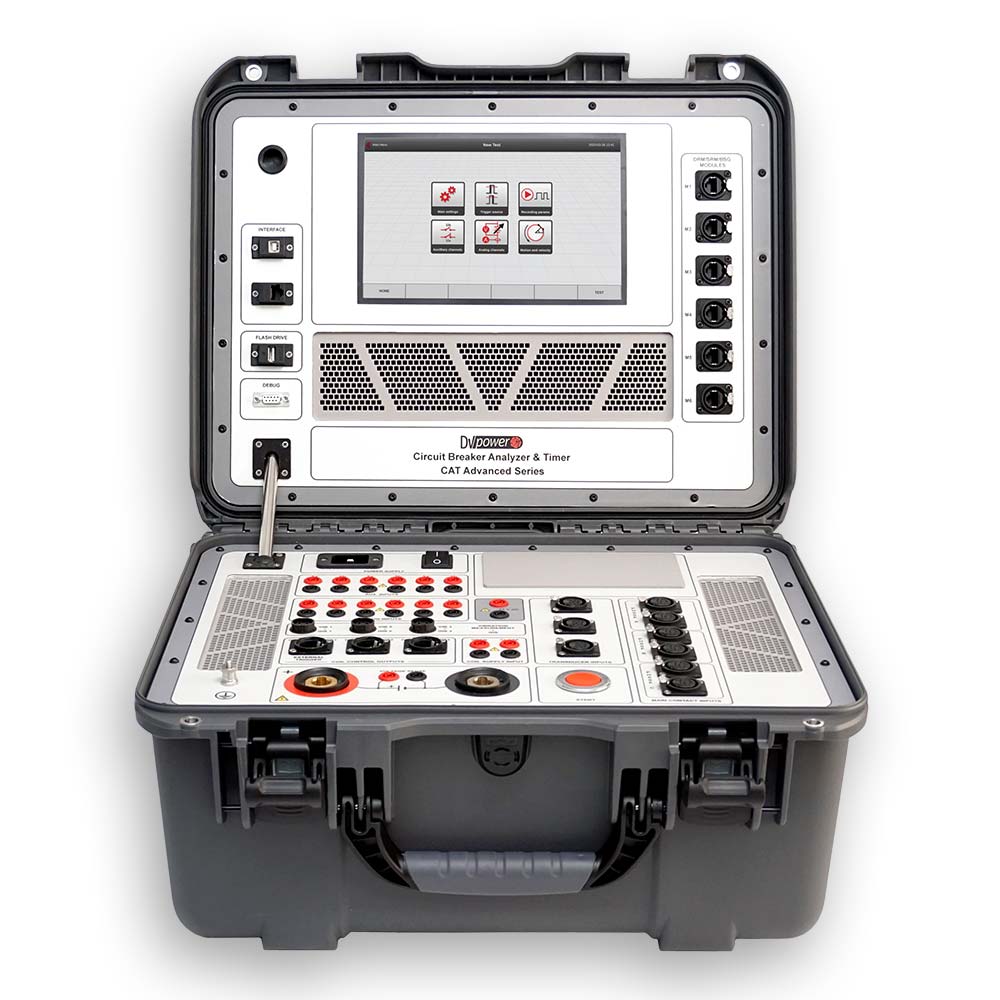

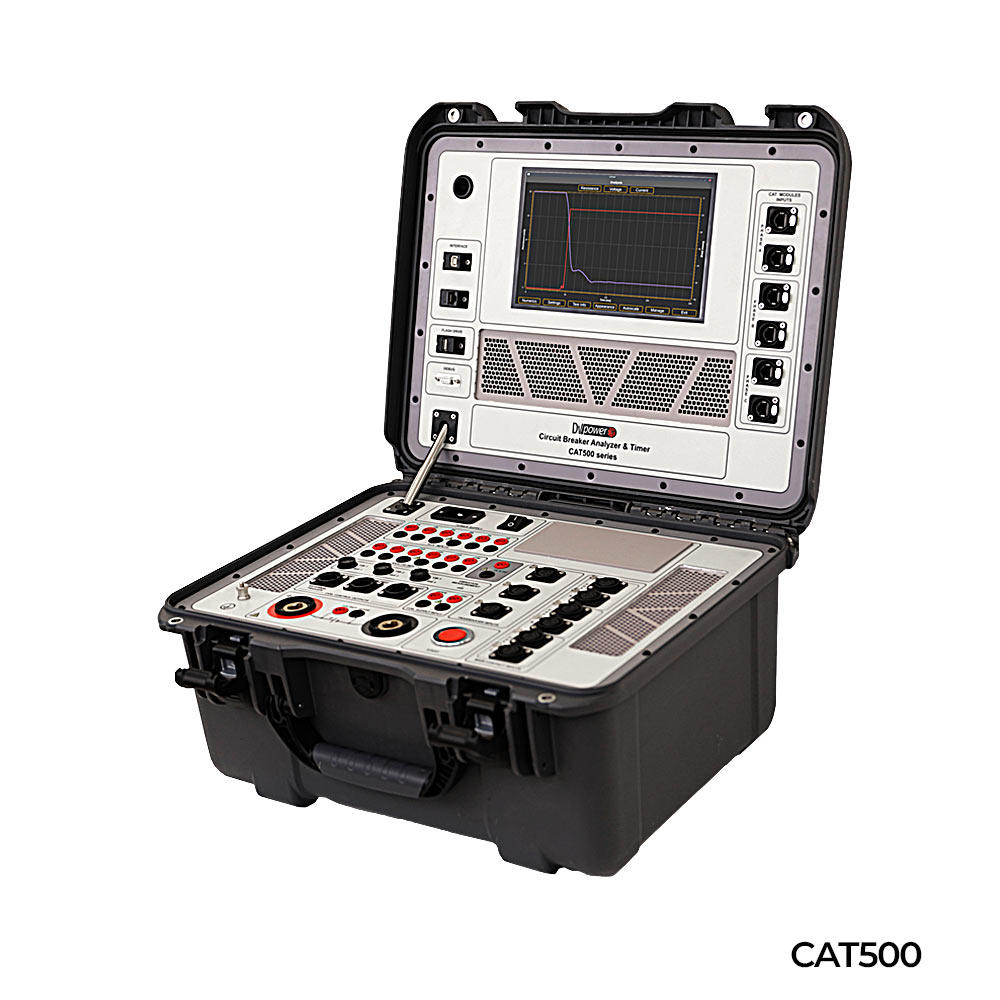

瑞典DV POWER　CAT500 斷路器定時器和分析儀

型號：CAT500 斷路器定時器和分析儀

品牌：瑞典DV POWER

會員價格：面議

聯系方式： 010-68940148

在線解答：

立即咨詢

瑞典DV POWER

IBEKO POWER AB 公司位于瑞典，專業致力于新一代電力測試設備的研發和制造，所有產品均采用更先進的技術和工藝制造。“DV- power”是其商標，該系列產品是由前“Programma”公司的一組工程師與ABB 公司共同研發的。我司成立于2000年，由一群電力電子技術領域...[查看更多]

瀏覽過此產品的用戶最終購買了

CAT250 斷路器分析儀和定時器

瑞典DVPOWER CAT500斷路器機械特性分析儀由愛儀器儀表網代理，CAT500引入了一些獨特的測試功能，大大節省了對所有類型的中高壓斷路器進行狀態評估所需的時間。現在熱賣中，如需購買，可通過ai1718.com的客服熱線聯系我們！

CAT500 斷路器定時器和分析儀特點：

高壓環境下的*測量
10.1 英寸觸摸屏顯示器
定時、運動和振動測量
通過單電纜連接和同時測量縮短了測試時間
CAT 模塊，用于在 BSG 條件下對多達 12 個主觸點室進行靜態/動態電阻測量
用于BSG條件下單極控制GIS CB定時測量的GIS模塊

瑞典DV-power斷路器定時器和分析儀 CAT500說明

瑞典DV-power斷路器定時器和分析儀 CAT500總結了我們過去13年在斷路器測試設備設計方面的所有經驗和知識。
CAT500 引入了一些獨特的測試功能，大大節省了對所有類型的中高壓斷路器進行狀態評估所需的時間。
定時通道記錄主電弧、電阻器和輔助觸點的閉合和斷開。主觸點通道還可以測量預插入電阻器（如果存
在于斷路器中）的電阻值。
CAT500 記錄 HV 和 MV 斷路器移動部件的開合線圈電流和位移曲線圖。六個線圈控制模擬通道可以同
時啟動操作、測量和記錄線圈電流（開和關），*高可達 35 A。
觸摸屏彩色顯示屏可輕松控制測試設備和結果分析。測試結果以表格和圖形形式打印在 112 毫米（4.4 英寸）
熱敏打印機（可選附件）上。

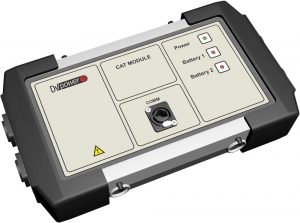

瑞典DV-power斷路器定時器和分析儀 CAT500 CAT 模塊

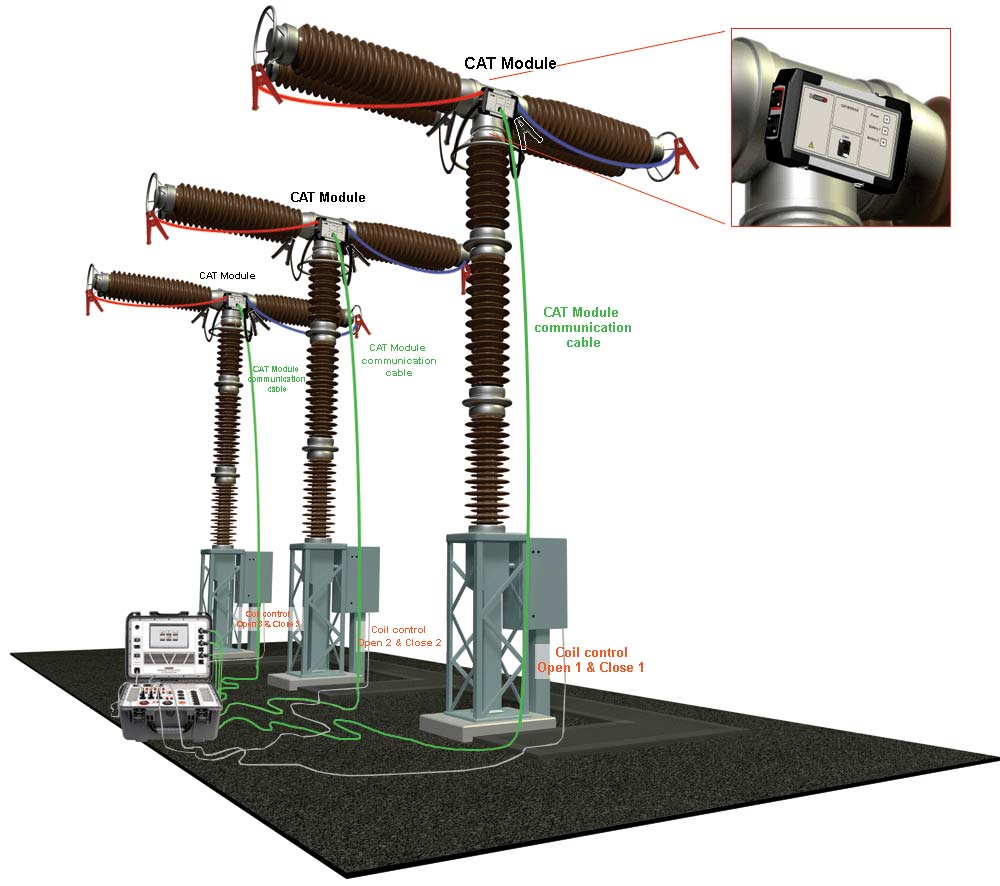

CAT 模塊可測量兩側接地 (BSG) 的 AIS（空氣絕緣變電站）斷路器的主電弧觸點定時、靜態和動態電阻。

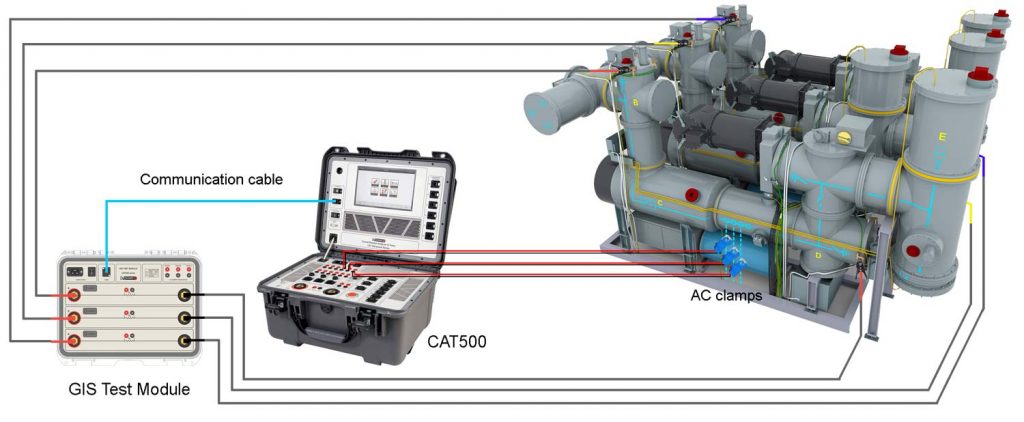

GIS測試模塊

兩側接地的 GIS 斷路器的定時測量適用于*苛刻的測試情況，例如單極操作的 GIS CB，其極外殼電阻非常低，
或 CT 不能包含在測試接入點之間的測量電路中.
GIS 測試模塊由三個基于電池的隔離電源組成，用于為單極受控 CB 的每個極提供大電流。
測試電流在每極 400-500 A 的范圍內（取決于電池充電水平和測試電路的電阻）。

不是測量 CT 次級電流信號的變化（當它在接地開關電路之外時），而是在電源內監測初級注入電流的變化。

CAT500 訂購信息
Instrument	Article No.
Circuit Breaker Analyzer &Timer CAT500 with 3 timing channels	CAT500-03-01
Circuit Breaker Analyzer &Timer CAT500 with 6 timing channels	CAT500-06-01
Circuit Breaker Analyzer &Timer CAT500 with 12 timing channels	CAT500-12-01

Included accessories
Windows based DV-CB PC software
USB cable
Ethernet cable
Debug adapter
Mains power cable
Ground (PE)cable
Transport case

Standard accessories	Article No.
Simultaneous timing,static (contact)resistance and dynamic resistance measurement
CAT Module -for timing,static and dynamic resistance measurement recording	CAT-MODUL-00
Communication cable 1 x 15 m for CAT module	C1-0015-RXX
Current and sense cables 2x 3,5 m(red)with SCT clamps for CAT Module	CSR-3Z5-15NCST
Current and sense cables 2x1,5 m(black)with SCT clamps for CAT Module	CSB-1Z5-15NCST

Control cabinet cables
Coil control cable set 5 m(16.4 ft)with banana plugs (Single-pole control -6 coil channels)	CO-05-6BC5B1
Coil supply cable set 4x5 m 2,5 mm2(16.4 ft,13 AWG)with banana plugs	CS-05-02BPBP
Auxiliary contacts cable set 12x5 m(16.4 ft)with banana plugs	AX-05-02BPBP
Analog channels cable set 12x5 m(16.4 ft)with banana plugs	AN-05-02BPBP
Cases
Plastic case for CAT modules (up to 2 breaks)	PLCAS-CAT-03
Cable plastic case -large size (x2)	CABLE-CAS-03

Optional accessories	Artide Na
GIS Test Module for Both Sides Grounded (BSG)on GIS (Gas Insulated Substa ion)	BSG-CATGIS-1
Minimum Trip Voltage Module (bult-n,compatble with CAT250 and CAT50 Senes excluding a thermal pninter	MTV-MODUL-00
Thermal printer 112 mm 44.4 inch)(bull-in,excluding Minimum Tnp Valt age Module)	PRINT-112-01
Thermal paper roll 112 mm (4.4 inch)	PRINT-112-RO
Built-in high precision measurement modue	RMO-HPMM-DG0
Current clamp 30V300 A power supplied from the instrument with extension 5 m(16.4 ft)and adapler	CACL-0300-07
Curert clamp 30/300 A with inlernal batlery supply and exlension 5m(16.4 fp	CACL-0300-08
AC Current clamp 1 A/1V with 5 m cable and adapter	CACL-ACBP-05
Main contact cables
Main contact cales 5 m(16.4 ft)with SCT camps (forthree timing chennek)	CM-05-34MXST
Main contact cales 5 m(16.4 ft)wth SCT camps (forsi fining crarnds)	CM-05-65MXST
Main contact cabes 5 m(16.4 fp with SCT clamps (ortwelve timing crarnels)	CM-05-12MXST
Main contact cabfes extensian
Main contact cabes extenson 5m (16.4 t)(or tfree or six tning chands)	E3-05-65MXFX
Main contact cabes extension 5 m (16.4 t)for welve timing channds)	E6-05-12MXFX
Main contact cabes extension 10 m (32.8 t)(or tfree or six tning chamds)	E3-10-65MXFX
Main contact cales extension 10 m (32.8 t)(or twelve lining channels)	E6-10-12MXFX
Main contact cables extension 15 m (49.2 t)(or tfree or six tning chands)	E3-15-65MXFX
Main contact cables extension 15 m (49.2 t)(or twelve tining channels)	E6-15-12MXFX
Con trol cabinet cables
Coll control cable set 10 m with banana plugs (Single-pole control -6 coll channels)	CO-10-6BC5B1
Coll control cable set 15 m with banana plugs (Single-pole control -6 coll channels)	CO-15-6BC5B1
Coll control cable 5 m wth banana pugs (Three-pole control -2 call channeks)	CO-05-00C5B1
Coll control cable 10 m wth banana pugs (Thee-pole control -2 coll channels)	CO-10-00C5B1
Col contrdl cabe 15 m wth banana plugs (Three-pole control -2 cod channels)	CO-15-00C5B1
Auxihary contacis cable set 12x 5 m with banana plugs	AX-05-02BPBP
Auxlhary contacts cale set 12x 10 m with banana plugs	AX-10-02BPBP
Auxlhary contacts cale set 12x 15 m with banana plugs	AX-15-02BPBP
Analog channets calble set 12 x 5 m with banana plugs	AN-06-02BPBP
Analog channee cale set 12 x 10 m with banana plugs	AN-10-02BPBP
Analog channee cale set 12 x 15 m with banana plugs	AN-15-02BPBP
Cable cases
Cable plastic case -medium size	CABLE-CAS-02
Cable plastic case with wheels -medum sze	CABLE-CAS-W2
Cable plastic case -large size	CABLE-CAS-03
Cable plastic case with wheels -large size	CABLE-CAS-W3

Current cables
Currert cables 2x5m 50mm2(32.8 tt,0AWG)with battery damps (for buit in 500 Amiao ohmmeter)		C2-05-50VMB3
Currert cables 2x10m 50mm2(32.8 tt,0 AWG)with battery damps (for buit in 500 Amicro ohmmeter)		C2-10-50VMB3
Currert cables 2x15m 70 mm?(49.2 tt,00 AWG)with battery damps (for buit in 500 Amico ohmmeter)		C2-15-70VMB3
Currert cables 2x5m 25mm?(32.8 tt,3 AWG)with battery clamps ffor buit in 200 A micro ohmmeter		C2-05-25LMB1
Curert cabes2x10m 25mm2(328 tt,3 AWG)wih battery clamps (for buit in 200 Amico ohmmeter)		C2-10-25LMB1
Currert cabes 2x15m35mme(49.2 t,2 AWG)with battery damps (for buit in 200 Amico ohmmeter)		C2-15-35LMB1
Sense cables
Sense cales 2x5 m (32.8 ft)with alligalor damps (for buit in micro chmmeter		S2-05-02BPA1
Sense cables 2x10 m (32.8 ft)with alligator damps (for buit in mico ohmmete)		S2-10-02BPA1
Sense cales 2 x15 m (49.2 ft)with alligalor damps (for buit in micro cnmmete)		S2-15-02BPA1
Tran sducers
Digital rotary transducer wth 5 m(16.4 ft)connection cale		DRT-250-C605
Digital rotary transducer wih 10 m (32.8 ft)connection cabe		DRT-250-C610
Digital rotary transducer with 5 m(16.4 )connecion cable with accessones		DRT-SET-0006
Digital rotary transducer with 10 m (32.8 t)conneclion cabe wth accessones		DRT-SET-0010
Linear analog transducer 150 mm(5.9 in)wih 5m (16.4 tt)connec ion cale and inear transducer rod		LAT-150-C305
Linear analog transducer 225 mm (8.85 in)with 5 m (16.4 f)connec ion cable and lnear transducer rod		LAT-225-C305
Linear analog transducer 300 mm(11.8 in)with 5m(16.4 tt)connection cable and inear transducer rod		LAT-300-C305
Lnear analog transducer 500 mm(19.68 in)with 5 m (16.4 f)connec ion cable and lnear transducer rod		LAT-500-C305
Tran sducer mounting kits
Unversal transducer mourting ki		UTMKIT-0000
Unversal transducer mourting kit -extended version		UTMKIT-0001
Doble trans ducer adapter		DTA-BOX-C002
Linear to rotary cowertor		LTR-CON-0000
Online first tnp test kit
Online first tnp lest kit-single-pole control		ONFTT-KJT-00
Online first tnp test kit -three-pole control		ONFTT-KJT-01
Piastic transport eas
Transport case for 500 senes		HARD-CASE-NC
Transpont case tor 500 senes ith wheels		HARD-CASE-NW

CAT500斷路器分析儀和計時器規格
電源供應
根據 IEC/EN60320-1; UL498, CSA 22.2連接
電源	90 V - 264 V AC
頻率	50/60 Hz
I輸入功率	3900 VA
保險絲15 A / 250 V，快速反應，但不是用戶可更換
適用標準
安裝/過電壓	第二類
污染	2度
安全	LVD 2014 / 35 /歐盟（CE符合）標準EN 61010-1
EMC	指令2014 / 30 /歐盟（CE符合標準EN 61326-1:2006）
CAN/CSA-C22.2 No. 61010-1
環境條件
操作溫度	-10 oC - + 55 oC / 14 oF - +131 oF
存儲和運輸	-40 oC - + 70oC / -40 oF - +158 oF
濕度	度5% - 95%相對濕度
尺寸/重量
尺寸(寬 x 高 x 深):	505 mm x 490 mm x 257 mm 19.9 in x 16.1 in x 10.1 in
重量	15-17 kg
CAT500斷路器分析儀和計時器說明文檔
